Qrystal

Take full control of your voice-service quality

Qrystal provides communication service providers, wholesalers, enterprises, call centers and cloud-based voice providers with unique, dual visibility monitoring capabilities for analyzing both SIP and RTP packets.

Unlike other solutions, Qrystal provides visibility into both control and media plane. This way, you get the full picture of in-call user experience, all in one place.

Voipfuture’s patented technology automatically identifies typical impairment patterns, allowing you to reduce the time it takes to fix problems.

Play Video

An agile, customer-focused voice monitoring and analytics platform

Qrystal is the only solution to provide actionable timeslice KPIs for assessing in-call user experience. Timeslice KPIs deliver MOS per call, but with all the temporal detail!

Combining voice quality assurance with root cause analysis

Providing deep insights through intelligent packet-by-packet inspection

Enabling effective, automated troubleshooting for both signaling and media issues

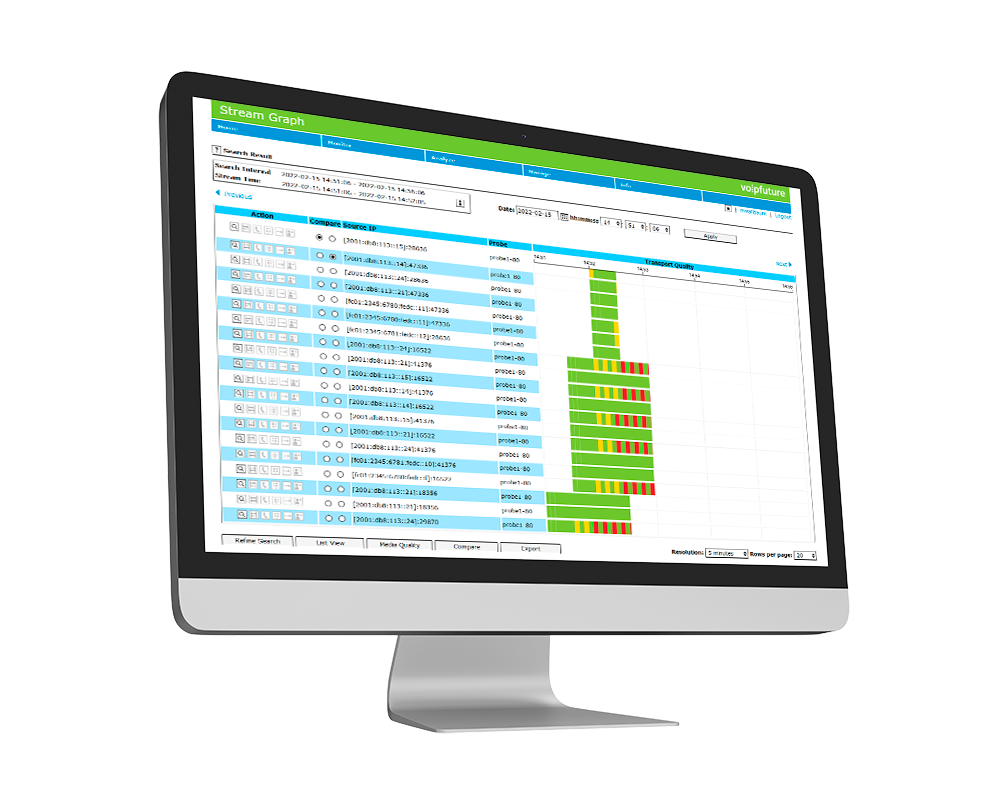

Offering accurate voice service intelligence through RTP time slicing

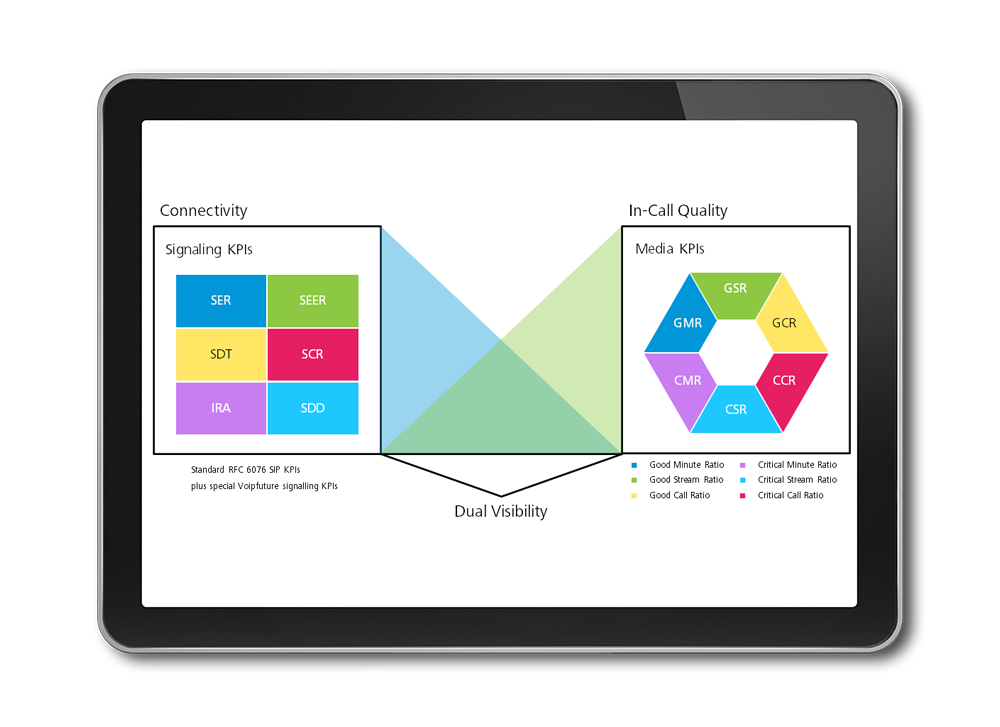

Unique, dual visibility into control and media plane KPIs

Visibility into call connectivity via SIP signaling monitoring

Data-based insights through 360-degree voice quality information

Visibility into the in-call user experience by monitoring RTP media in detail

Qrystal main features

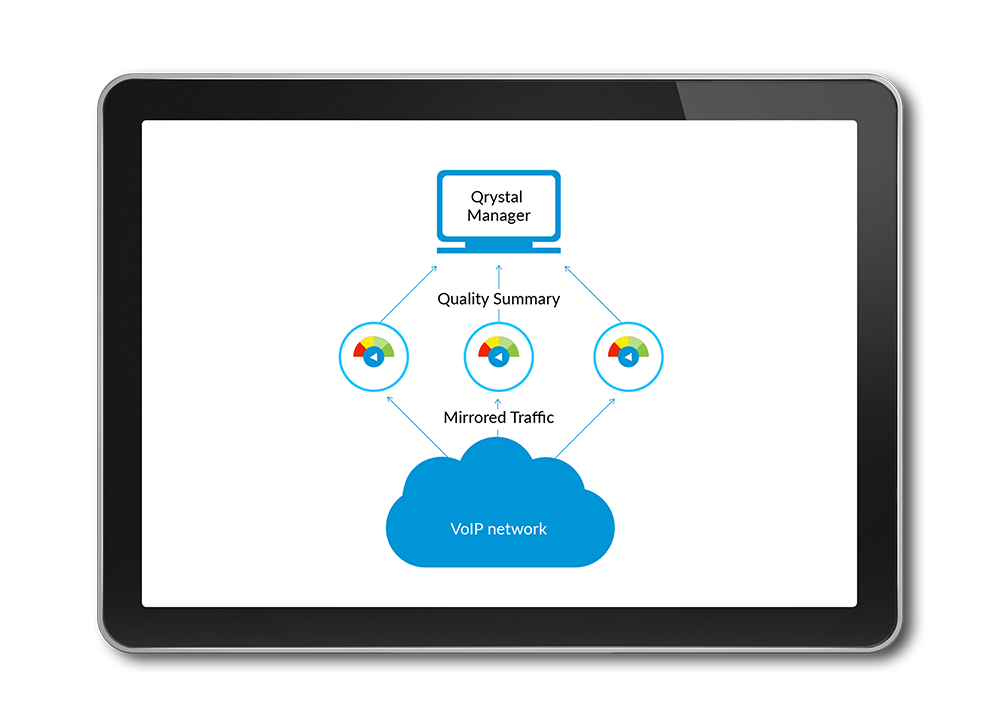

A perfect combination of distributed Probes and a central Manager

Real-time analysis of voice packets on a link is provided by Qrystal Probes. The central Qrystal Manager collects quality information for post-processing, storage and display.

Play Video

Qrystal Probes

  • Determine the signaling and media stream characteristics at multiple points throughout the network.
  • Inspect all in-memory SIP, RTP and RTCP packets in real time.
  • Generate highly compressed timeslice metrics for further processing by the Qrystal Manager.
  • Analyze call-related SIP signaling at a monitoring point and summarize as xDRs.

Qrystal Manager - a carrier-grade data warehouse

  • Collects all the metric data from the Qrystal Probes for post-processing and aggregation. The data warehouse stores KPIs, CDRs, and other data.
  • A wide-array of analytics and troubleshooting capabilities for effective operations and service monitoring.
  • Numerous interfaces for integration with Operations Support Systems (OSS)/Business Support Systems (BSS) are available out of box.
feature_3

Patented fixed time-slicing technology

This unique technology creates quality data records (QDRs) which contain highly condensed statistical information for every 5-second segment of an RTP stream. Our QDRs hold several hundred values, ratios, KPIs, and even automatic root cause indicators.

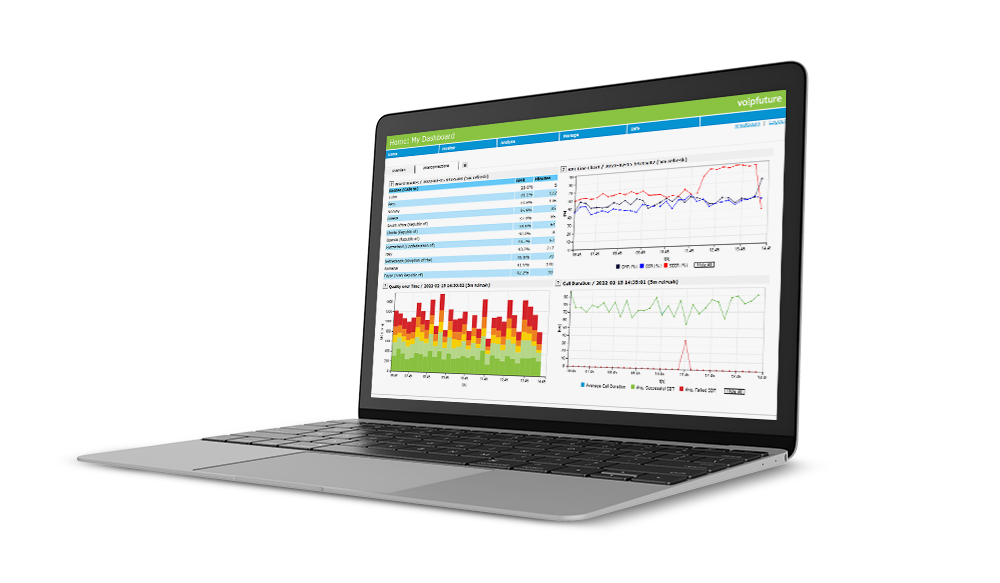

Intuitive, accurate and widely accepted KPIs

These KPIs are used for:

  • Dashboards for NOCs, VoLTE eNB performance monitoring, SLA monitoring, etc.
  • Adaptive alarming on signaling performance, in-call user experience (MOS) and network performance.
  • Portals and reports for end customers.

Working with Voipfuture is beneficial to all telecommunication players

Qrystal is applicable to all VoIP services, including VoLTE, VoWiFi, IMA, IPX, NGN and enterprise services.

Mobile Networks

Simply using HD codecs is not enough to ensure premium voice quality. This is why Qrystal provides individual cell performance, reasons for call drops and other key data.

Fixed Networks

CSPs can only gain a competitive edge if they maintain excellent voice quality. Qrystal keeps service quality under control while ensuring the efficient use of resources.

Wholesale Networks

 IPX and international wholesale services have undergone profound changes in recent years, making high-quality user experience a must as a key differentiator.

Enterprises and Call Centers

Enterprises and call centers are often faced with the challenge of managing voice services delivered by different providers using one IP infrastructure. This complicates identifying faults and root causes.

Cloud Deployments

Moving voice services to the cloud carries many benefits. However, leveraging these benefits without compromising user experience requires a high level of visibility.

Qrystal Intelligence

A business intelligence solution that provides fascinating insights into your voice service and network. Qrystal’s unique monitoring statistics are processed in the context of your own business rules and then analyzed and visualized interactively for both management and operations.

In addition, Qrystal Intelligence generates intelligent alarms to detect anomalies in network and service performance based on all VoIP traffic flowing through your network.

Why customers choose Qrystal

Voipfuture
Other
Signaling monitoring
v_green
v_green
Call flow diagrams
v_green
v_green
Registration monitoring
v_green
v_green
Call traces/packet recording
v_green
v_green
Average MOS per call
v_green
v_green
Accurate MOS with high temporal resolution
v_green
Automatic root cause detection
v_green
Codec detection on packet level
v_green
Aggregation for trunks & numbering plans
v_green
Support for timeslice KPIs (ETSI TR 103639)
v_green
Scalability
v_green
Vendor independence
v_green
Vodafone-Logo
"Our team hasn't had any complaints about voice quality since we put Qrystal in"
Richard Milner
Project Manager, Vodafone UK
UTA-logo
“From the moment we installed the system we have been able to control the quality provided to us by our service provider. RTP Monitoring allows us to reduce the organizational reaction time to voice-related issues.”
Olaf Schneider
CIO UTA
Partner
“It is difficult to see how anyone could launch Voice over WiFi services without a tool like Qrystal. Being able to identify WiFi-related service degradation is key to our efficient operations."
Amir Haviv
Manager, Assurance and Analytics for Mobile, Partner
Frost-and-sollivan-logo2
“We appreciate how Voipfuture conducts media quality analysis on IP networks to identify network performance issues and address them holistically ‐ compared to the traditional issue‐by‐issue, crisis‐by‐crisis approach.”
Olga Yashkova
Program Manager, Frost & Sullivan
KielNET-logo2
“Finally, we can constantly improve our service, reduce our churn rate and set a mark in service quality.”
Matthias Winter
CTO KielNET
Vodafone-Logo
“Ensuring a high quality experience for consumers and carrier partners is paramount, and Voipfuture tools provide us with the rich data and insight to help deliver this for our customers.”
Clive Goodwin
Head of International Voice Services at Vodafone
Rohde-and-Schearz-logo2
“Voipfuture stood out with their impressive technology and their experience. The Voipfuture team is very professional and customer-oriented, which perfectly aligns with our approach to the market. We are very happy to be working with them on the outstanding R&S©AVQA product.”
Constantin Reden
VP Market Segment ATC/AD at R&S
Partner
“Voipfuture’s solution stood out during our assessment for voice quality monitoring and proved its value in the first month after deployment. It delivers real-time data visibility for both quality of service and quality of experience. This is essential for us to continuously improve speech quality for our customers.”
Ronen Keshet
Head of Partner Network Engineering, Partner

How can cloud-based voice service providers benefit from Qrystal?

Learn how to maintain full control over customer experience while benefiting from the flexibility and elasticity of the cloud with significantly reduced TCO

FAQs:

Qrystal is the first and only carrier-grade dual-visibility platform on the market. It provides communication service providers, wholesalers, enterprises, call centers, and cloud-based voice providers with unique, dual visibility monitoring capabilities for analyzing both SIP and RTP packets.

Qrystal in a nutshell.

The difference is in detail and focus. Pseudo-information about voice quality is easy to obtain when evaluating RTCP (RFC 3550) reports, which is what many monitoring systems do. However, there are many drawbacks to this approach. RTCP simply does not tell the whole story, if at all.

Qrystal relies solely on information gathered directly from RTP packets of live customer VoIP calls. Thus, trustworthy quality information is always available, regardless of firewalls, customer premises and network equipment. The detailed 5 second measurements also allow applying Voipfuture’s patented pattern matching technology, which helps operations focus on the real problems in a network.

Qrystal is a software solution that runs either on standard COTS hardware or on virtual machines.

No. Qrystal is vendor-agnostic and monitors any standard VoIP traffic.

Qrystal provides full flexibility and can be deployed on-prem, in a private cloud, in the public and in hybrid deployments, e.g., with Qrystal Probes on-premise and the Qrystal Manager in the public cloud. Whatever constellation you choose, all Qrystal components are deployed in infrastructure that is under your control.

Qrystal does not analyze the payload of RTP packets. Network performance analysis is completely independent of the employed codec. Special codec support is only required to assess user experience by computing mean opinion scores (MOS). Qrystal supports all codecs currently in use, from G.711 to EVS and Opus.

Yes. Qrystal is a passive monitoring solution that analyzes the RTP media streams of all actual calls on the monitored links. It analyzes all streams in real-time to produce detailed information for each actual call.

Qrystal is beneficial to many stakeholders within the organization.

It is used by:

technical operation teams—for reporting, alarming and troubleshooting

performance optimization teams—to enhance service quality and user experience

sales and marketing teams who use the unique Qrystal data to attract and retain customers, and

DevOps—as a reliable source of voice service quality data and enabler for Service Automation.

Qrystal is a highly scalable software solution that is already being used by call centers with 500 concurrent call measurements up to Tier-1 carrier networks with millions of concurrent calls.
